Inside FDIE

Inspect the evidence in context.

Real product captures from example analyses of older firmware. They show the review workflow and its limitations; they are not independent validation of a vulnerability or an endorsement by the device manufacturer.

See the workspace behind FDIE

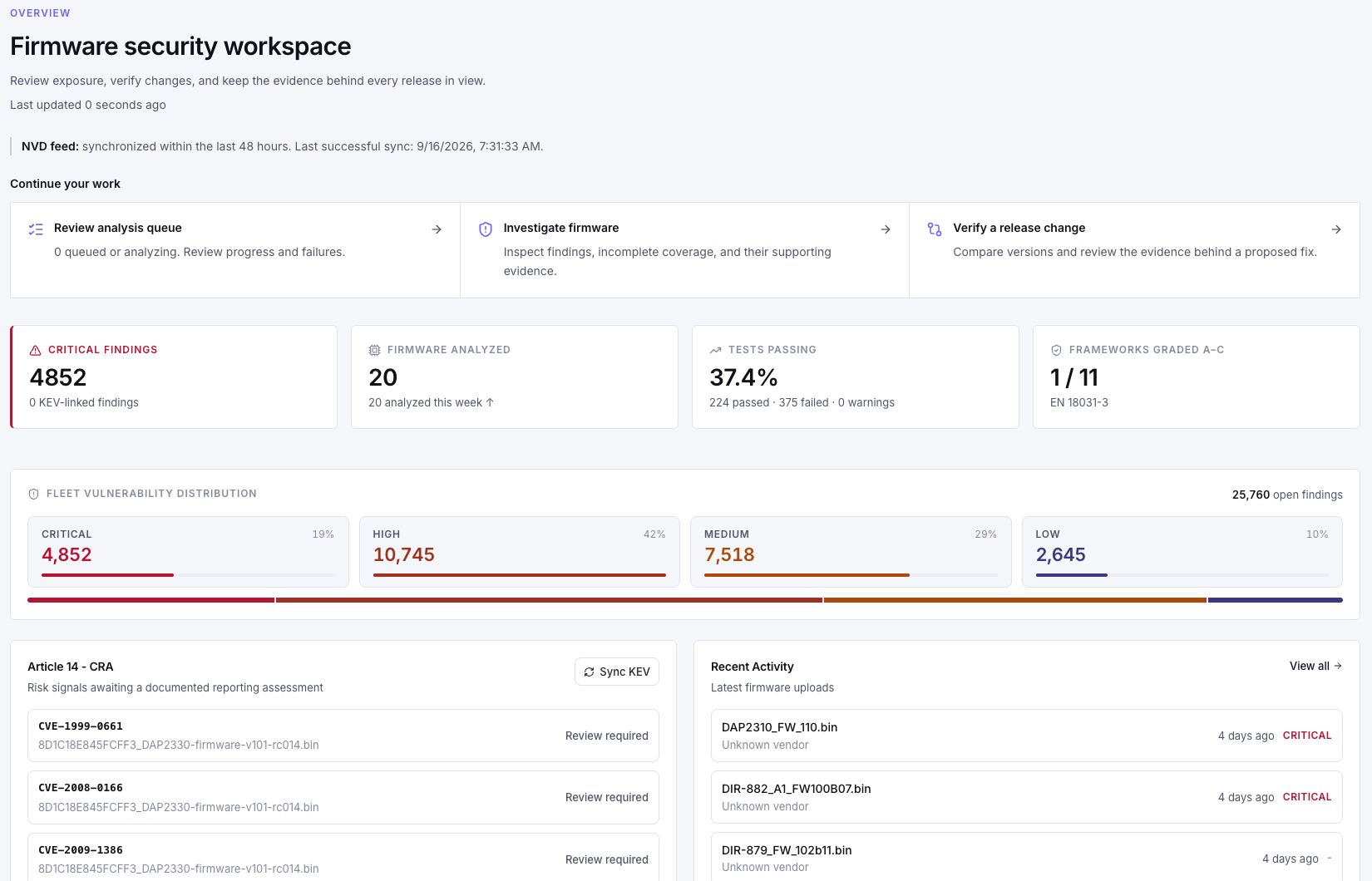

FDIE demo dashboard with analysis-queue, firmware-review and release-comparison shortcuts above fleet summary cards. Enlarge dashboard

Historical demo workspace with older firmware samples. Displayed totals mix finding types and may include repeated occurrences; they are not a validated count of unique vulnerabilities. Count definitions, severity and grade labels still need reconciliation. This capture illustrates the workspace, not a verified security outcome.

View the original capture for context

Keep firmware and coverage in view

FDIE firmware library showing six older firmware samples with partial and unassessed binary-analysis coverage. Enlarge firmware library

Example library of older firmware releases. “Complete” refers to processing, while partial and unassessed coverage warnings remain visible. Grades and count semantics await reconciliation; zero recovered binaries or missing findings do not establish that a device is secure.

View the original capture for context

Follow a finding back to the file

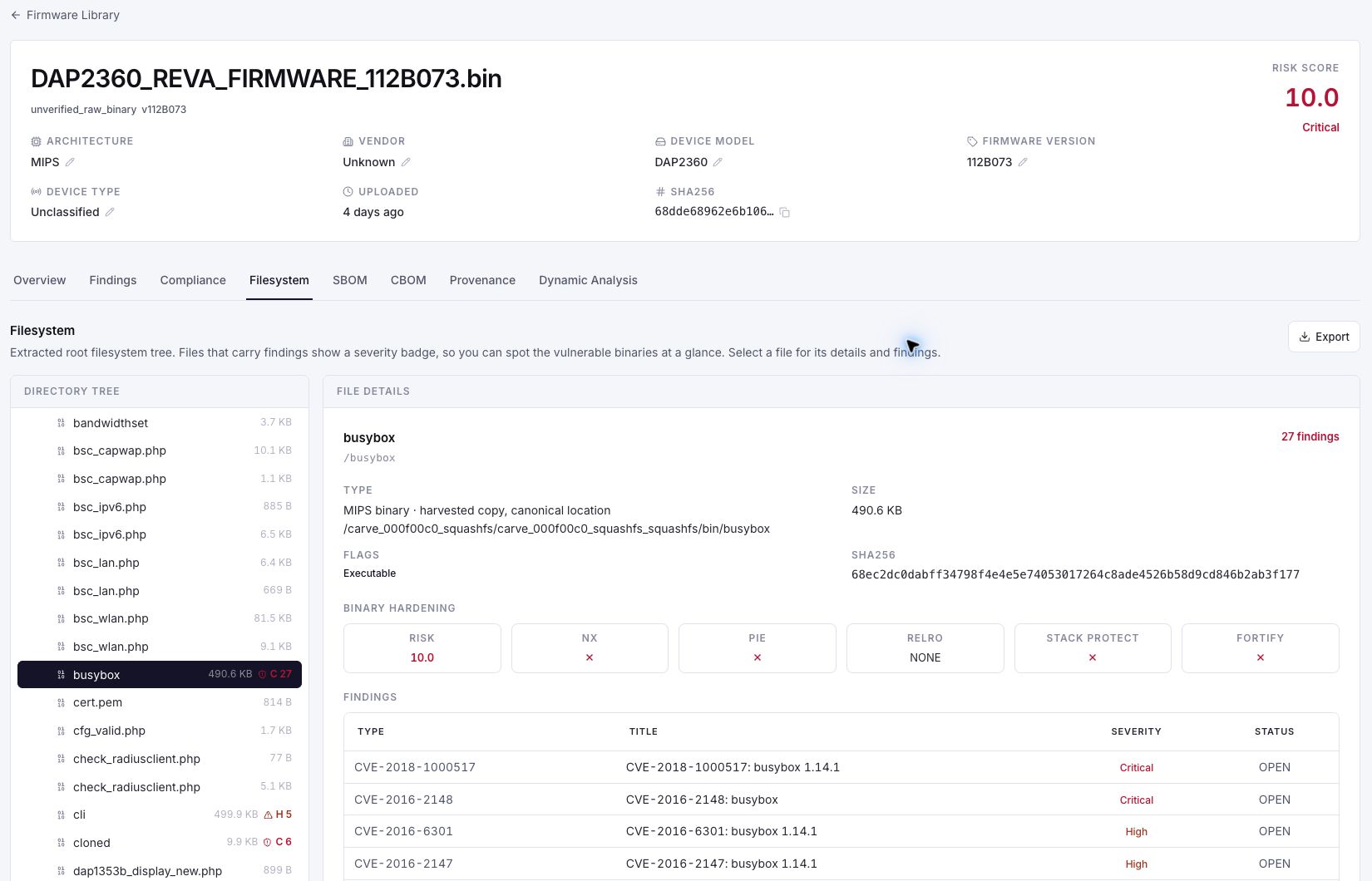

BusyBox selected in the FDIE filesystem browser for an older DAP2360 release, with source location and associated findings. Enlarge product capture

Example analysis of an older firmware release. BusyBox is selected with its source location and associated findings. This capture illustrates the evidence browser; displayed findings are not independent vulnerability validation or a statement about current vendor products.

Inspect a recorded runtime run

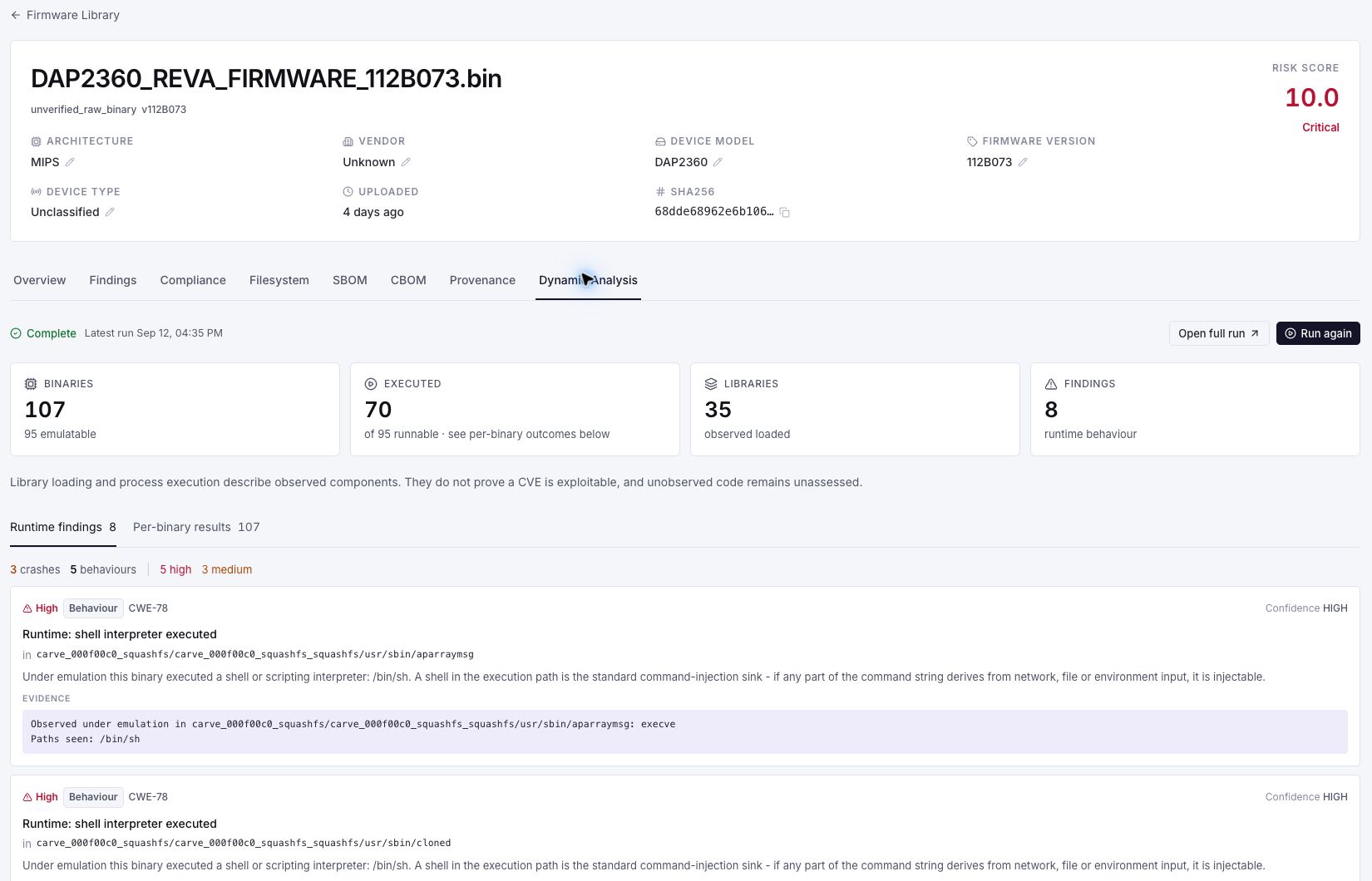

FDIE Dynamic Analysis for an older DAP2360 firmware release, showing per-binary runtime coverage and recorded observations. Enlarge runtime detail

Example analysis of an older DAP2360 firmware release using per-binary emulation, not a full-device boot. Displayed execution counts and severity labels await reconciliation. Process and shell observations do not establish command injection or device exploitability; unobserved paths remain unassessed.

View the original capture for context

Keep processing and coverage in view

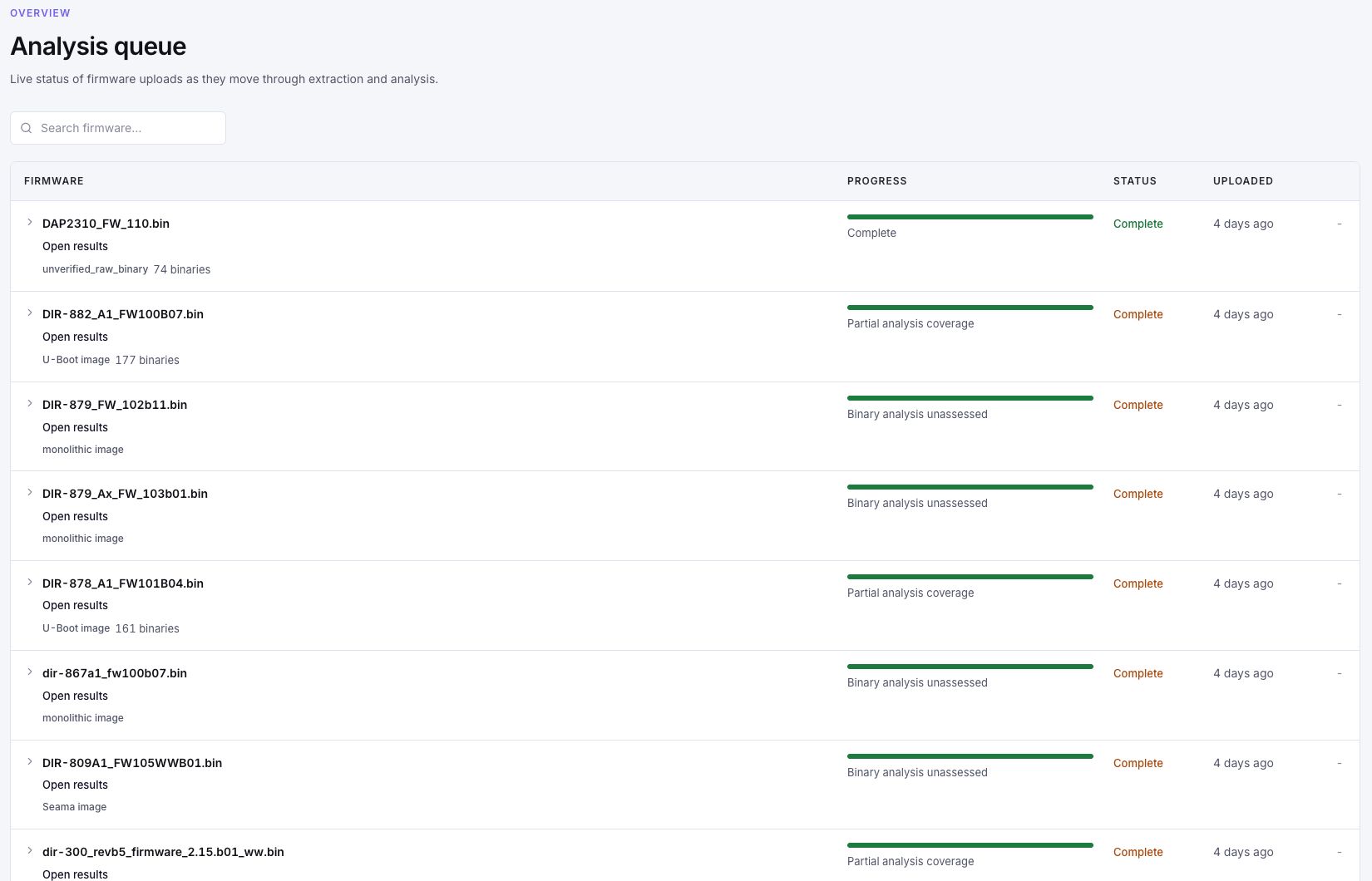

FDIE analysis queue lists older firmware samples with partial and unassessed binary coverage warnings. Enlarge product capture

Example analyses of older firmware releases. Processing completion is separate from assessment coverage: partial and unassessed warnings remain visible. A completed job or zero findings does not establish that a product is secure.

Inspect function comparisons and uncertainty

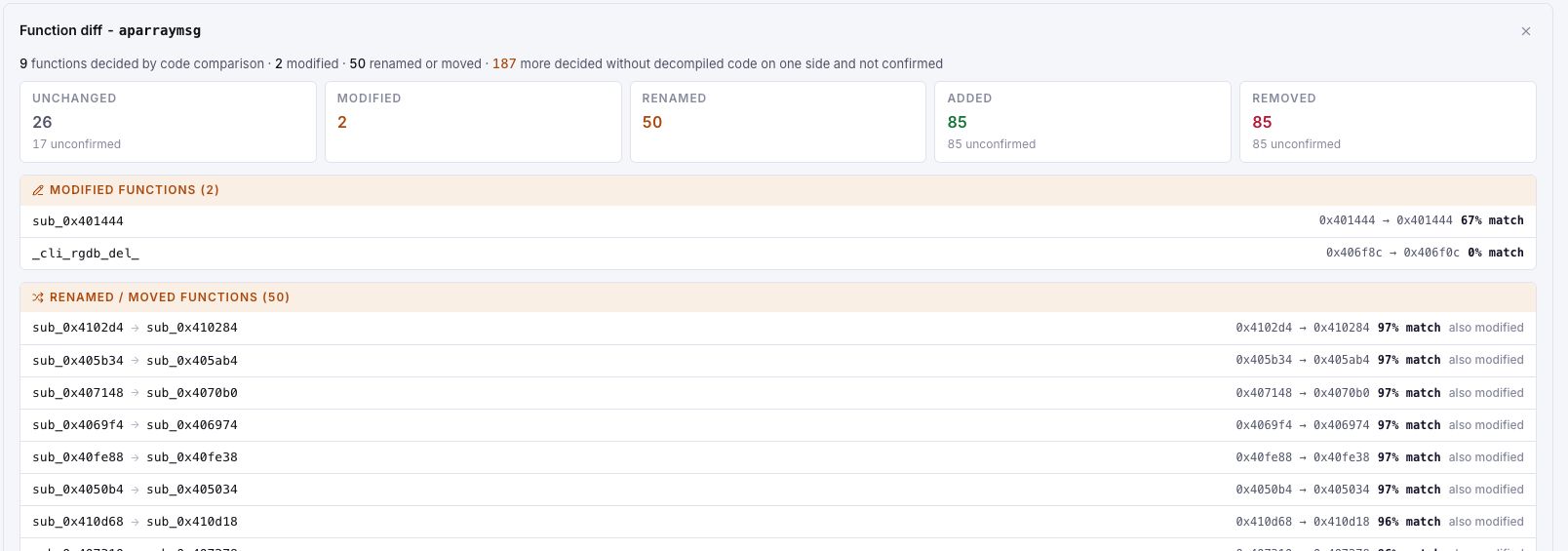

FDIE FunctionDiff for aparraymsg shows modified, renamed and provisional function matches with missing decompilation warnings. Enlarge product capture

Example comparison of older DAP2360 releases. Function comparisons include confirmed and provisional matches for analyst review. The capture includes 187 comparisons without decompiled code on one side; additions and removals marked unconfirmed are not established changes. Changed functions do not prove a vulnerability was fixed.

Review coverage across frameworks

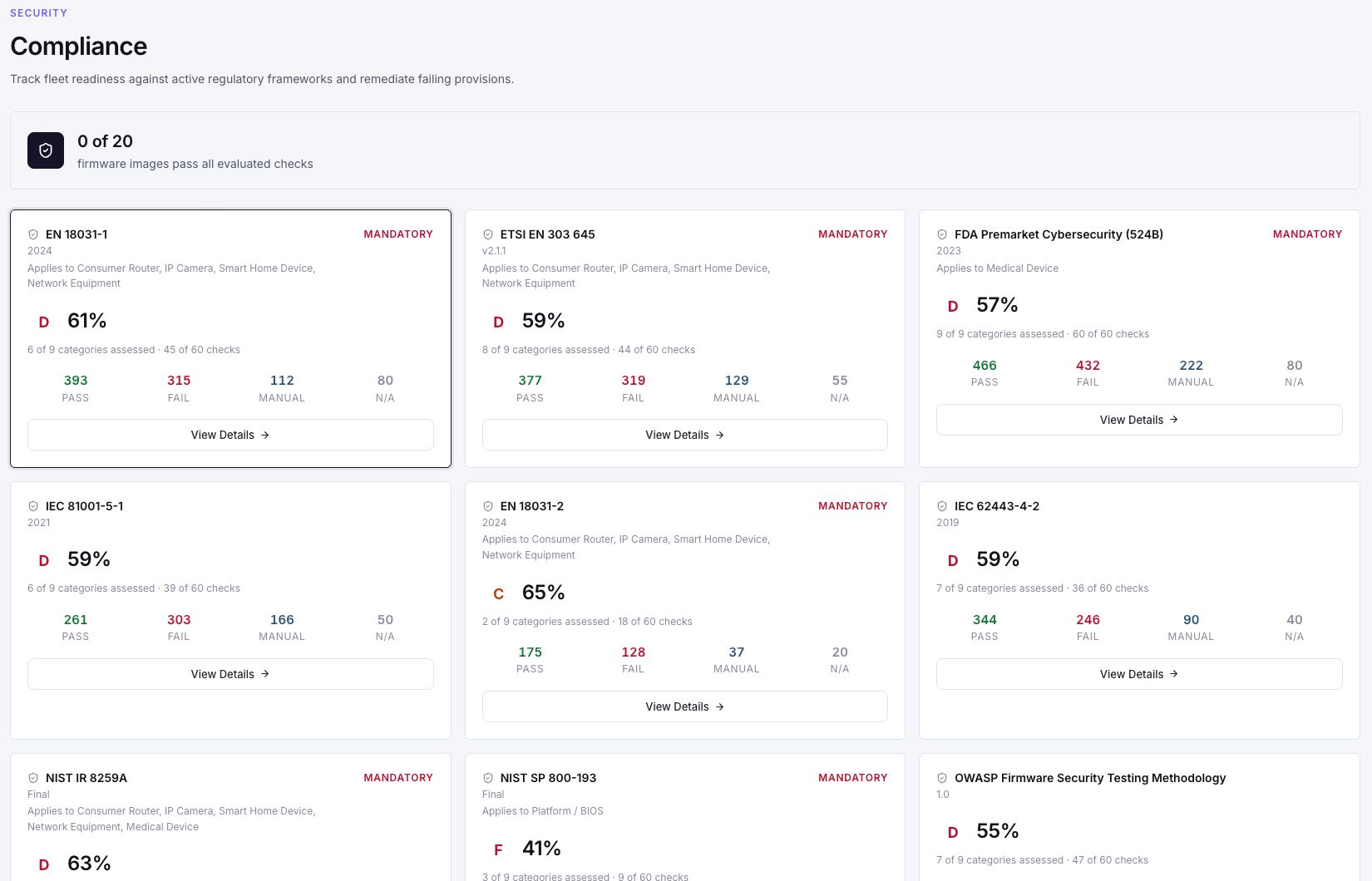

Six FDIE fleet framework cards from older firmware analyses, showing assessed coverage, manual-review counts and recorded grades. Enlarge framework overview

Historical fleet assessment view of older firmware, showing six framework cards. Scores, grades and “Mandatory” labels await reconciliation; applicability depends on the product and jurisdiction. Coverage and manual-review counts remain visible. These are assessment outputs, not certification or a CRA conformity grade.

View the original capture for context

Follow a framework into its checks

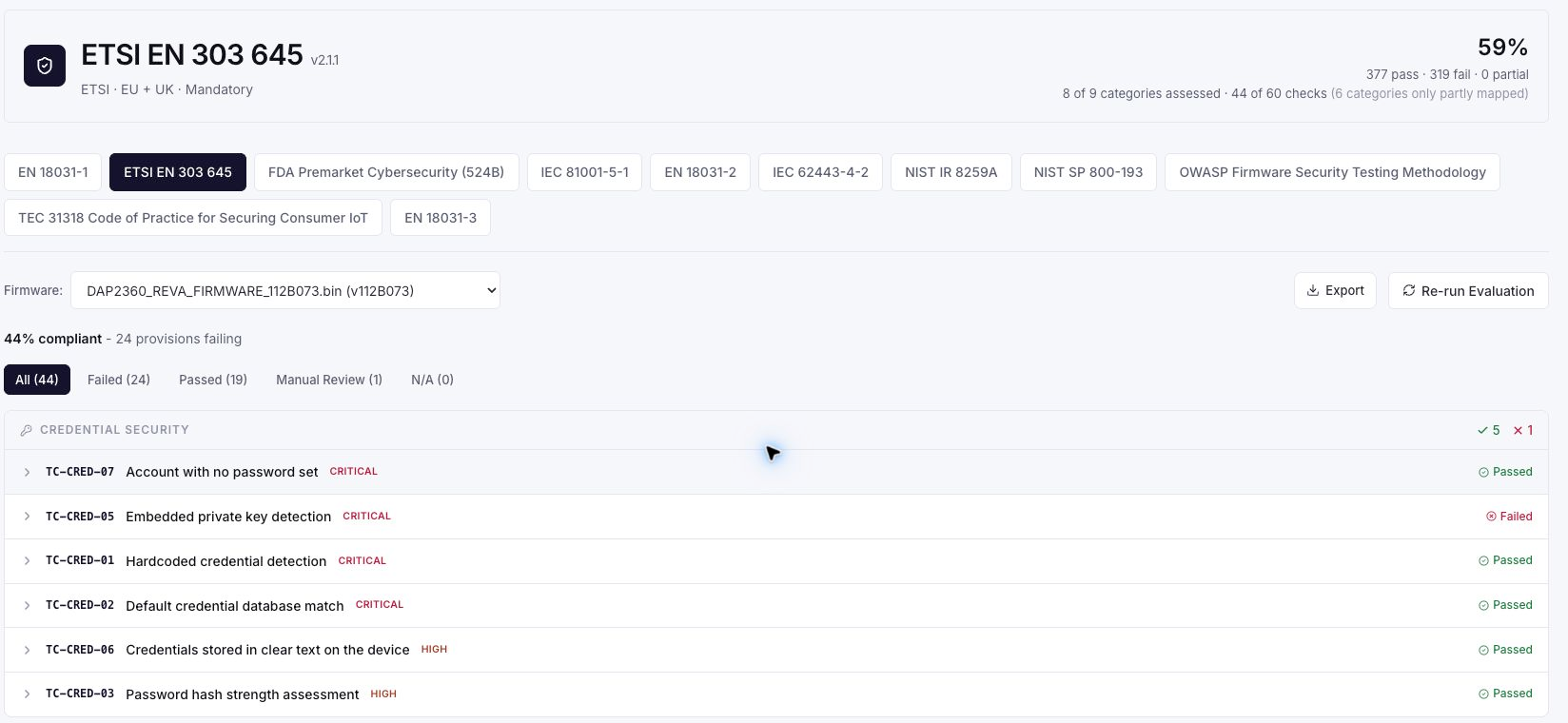

FDIE ETSI EN 303 645 checklist for an older DAP2360 release, with firmware selection, coverage limits and credential-check outcomes. Enlarge ETSI checklist

ETSI EN 303 645 checklist for an older DAP2360 release. The header and selected-firmware scores have unresolved scope and scoring labels and are not directly comparable. Recorded pass/fail outcomes need supporting evidence and review; they do not establish product conformity.

Next step

Start with one product and two releases.

Review a sample comparison with us. Then scope a supported image pair, hosting requirements and the evidence your team needs to evaluate.

or explore pricing

21-day free trial on the full platform. No card, no automatic conversion.
